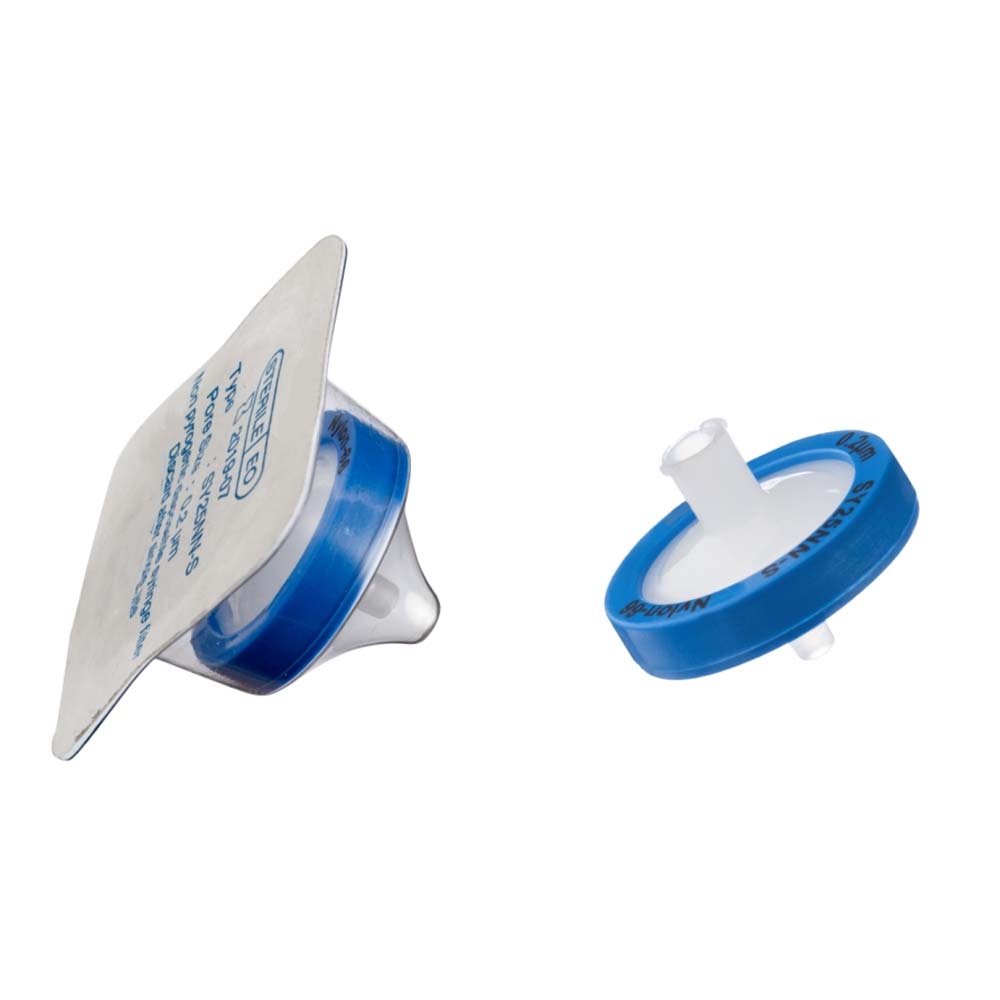

Pre-sterilized Nylon-66 Membrane Syringe Filters

The Pre-Sterilized Nylon-66 Membrane Syringe Filters from Scilabex are designed for precise and contamination-free filtration in critical laboratory and pharmaceutical applications. These advanced laboratory syringe filters offer excellent chemical compatibility, low extractables, and validated bacterial retention for reliable sterile filtration.

Widely used across the USA and global laboratories, these filters are ideal for applications requiring high purity, minimal sample loss, and consistent performance.

What are Pre-Sterilized Nylon-66 Syringe Filters?

These syringe filters are gamma sterilized and ready-to-use filtration devices featuring a hydrophilic Nylon-66 membrane. They provide efficient removal of bacteria and fine particles while ensuring minimal interference with the sample.

They are commonly used for:

• Sterile filtration of biological and pharmaceutical samples
• Chemical and solvent filtration
• Critical lab and research applications

Applications

The Pre-Sterilized Nylon-66 Membrane Syringe Filters are widely used in:

• Sterile filtration of DMSO for cryo-preservation of stem cells
• Particulate removal from pharmaceutical parenterals before administration
• General sterile filtration in laboratory environments

These filters are ideal for both biological and chemical applications.

Special Features

• Absolute retention for reliable sterilization
• Low hold-up volume for minimal sample loss
• Minimum back pressure for smooth filtration
• Extremely low extractables for accurate results
• Hydrophilic membrane – no pre-wetting required
• Wide chemical compatibility
• Heat sealed to ensure ‘no leaching’
• No initial flushing required
• Validated for bacterial retention as per ASTM F838

Specifications

Construction

• Membrane: Nylon-66 Membrane
• Pore Size: 0.2µm, 0.45µm
• Diameter:
  • 4mm
  • 13mm
  • 25mm
• Inlet: Female luer-lock
• Outlet: Male luer slip
• Housing: Polypropylene

Operational

• Max. Operating Temperature: 55 °C
• Max. Differential Pressure: 75 psi @ 25°C
• Burst Pressure: >12 kg/cm²

Hold-up Volume (with air purge):

• <5µl (4mm)
• <20µl (13mm)
• <50µl (25mm)

Effective Filtration Area:

• 0.07 cm² (4mm)
• 0.8 cm² (13mm)
• 4.15 cm² (25mm)

Bubble Point:

• (0.2µm): >50 psi (>3.52 kg/cm²)
• (0.45µm): >32 psi (>2.25 kg/cm²)

Clean Water Flow Rate @ 20 psi (0.2µm):

• 0.5 ml/min (4mm)

• 6 ml/min (13mm)

• 40 ml/min (25mm)

Clean Water Flow Rate @ 20 psi (0.45µm):

• 1 ml/min (4mm)

• 10 ml/min (13mm)

• 80 ml/min (25mm)

Sample Volume:

• <1 ml (4mm)
• <10 ml (13mm)
• <100 ml (25mm)

Retention Efficiency:

• (0.45µm): LRV >7 for S. marcescens (ATCC 14756)
• (0.2µm): LRV >7 for Brevundimonas diminuta (ATCC 19146)

Key Benefits

Sterile & Ready to Use

• Gamma sterilized for immediate use
• Eliminates contamination risks

High Filtration Efficiency

• Absolute retention of bacteria and particles
• Ensures high purity samples

Low Sample Loss

• Low hold-up volume preserves valuable samples
• Ideal for small volume applications

Wide Compatibility

• Suitable for aqueous solutions and many solvents
• Versatile for multiple lab applications

How to Use

1. Open the sterile packaging carefully
2. Attach the filter to a syringe
3. Draw the sample into the syringe
4. Filter into a sterile container

Ordering Information

Type

Size

Pore Size

Inlet / Outlet

Sterility

Pack Size
