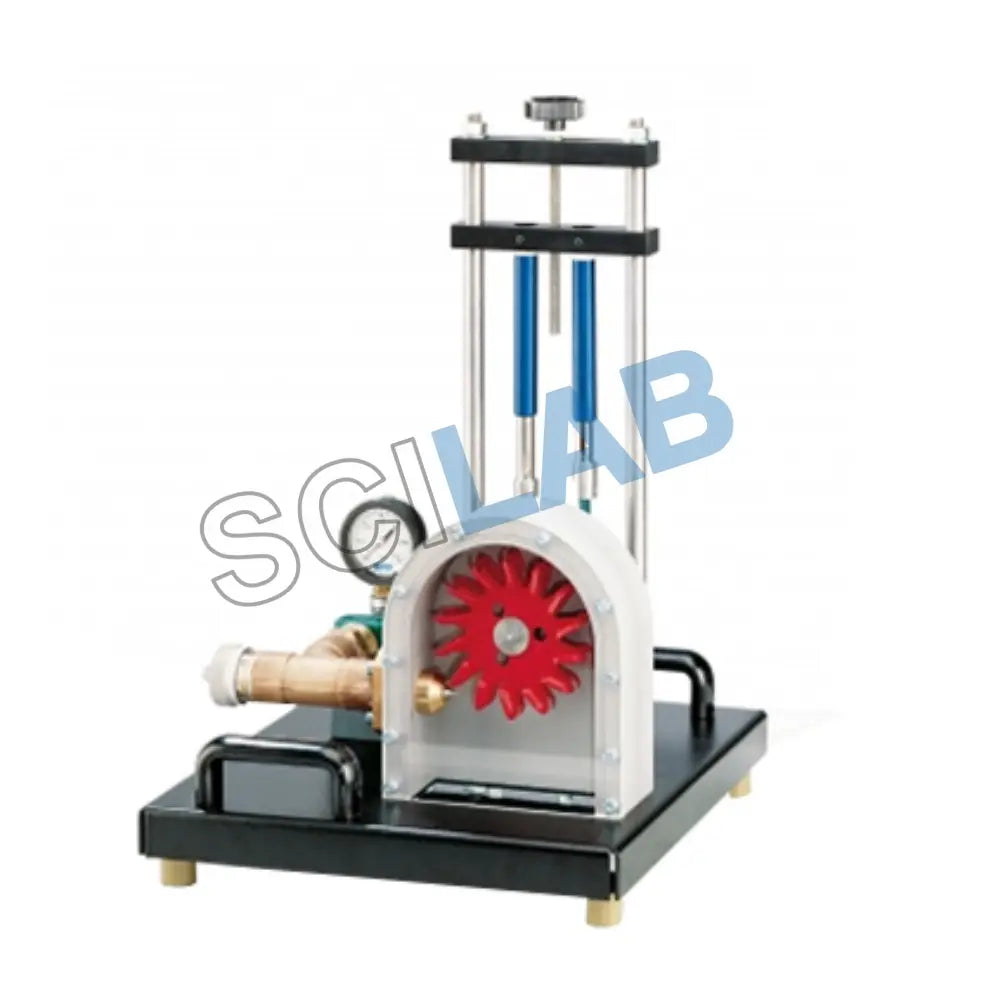

Pelton Wheel Turbine Demonstration (Accessory)

Note: Price is based on given specs. For other specifications, please submit an inquiry.

The Pelton Wheel Turbine Demonstration (Accessory) is an essential instructional and experimental setup used to demonstrate the working principle of a Pelton wheel turbine, which is a type of impulse turbine. This demonstration unit plays a vital role in mechanical engineering, civil engineering, and renewable energy laboratories, helping students and professionals understand how high-head water energy is converted into mechanical energy.

Pelton wheel turbines are widely used in hydropower generation, especially in locations where water is available at a high head and low flow rate. The demonstration accessory provides a clear, safe, and visual way to study turbine components, jet action, bucket design, and energy conversion in real time.

Trusted scientific equipment suppliers like scilabex.com and Scilabstore offer high-quality Pelton Wheel Turbine Demonstration accessories suitable for PAN India and international delivery, making them ideal for academic institutions, training centers, and research labs worldwide.

What is a Pelton Wheel Turbine Demonstration (Accessory)?

A Pelton Wheel Turbine Demonstration accessory is a laboratory teaching aid designed to demonstrate the construction and working of a Pelton turbine. It typically includes a Pelton wheel with buckets, nozzle arrangement, casing, shaft, and water jet system, allowing learners to observe the impulse action of water on turbine buckets.

This accessory is commonly used along with hydraulic benches or turbine test rigs to help understand:

• Jet velocity and direction

• Impulse force on buckets

• Energy transfer from water to turbine

• Speed and rotation behavior

Principle of Pelton Wheel Turbine

The Pelton wheel turbine operates on the impulse principle. In this principle, the kinetic energy of a high-velocity water jet is converted into mechanical energy when it strikes the turbine buckets.

Key principle points:

• Water jet hits the bucket tangentially

• Pressure remains atmospheric throughout the process

• Change in momentum of water produces force on buckets

• Turbine rotates due to impulse force

Construction of Pelton Wheel Demonstration Unit

The demonstration accessory generally consists of the following parts:

1. Nozzle with Needle Valve – Controls water flow and jet velocity

2. Pelton Wheel (Runner) – Equipped with double hemispherical buckets

3. Buckets (Vaned Cups) – Split water jet into two equal streams

4. Shaft and Bearings – Support smooth rotation

5. Casing or Frame – Protects and supports the setup

6. Water Collection Arrangement – Safely channels water after impact

All components are designed for durability, corrosion resistance, and repeated laboratory use.

Working of Pelton Wheel Turbine Demonstration

• Water under high head is supplied through the nozzle

• The nozzle converts pressure energy into kinetic energy

• High-velocity jet strikes the Pelton buckets

• Water jet splits into two streams and deflects nearly 180°

• Change in momentum causes the wheel to rotate

• Mechanical energy is produced at the shaft

The demonstration unit allows clear observation of jet action, bucket design, and turbine rotation, making it ideal for educational purposes.

Key Features of Pelton Wheel Turbine Demonstration Accessory

• Clear visual demonstration of impulse turbine working

• Robust and corrosion-resistant construction

• Smooth and stable turbine rotation

• Compatible with standard hydraulic benches

• Low maintenance and long service life

• Suitable for repeated academic use

Advantages of Pelton Wheel Turbine Demonstration

• Easy understanding of impulse turbine concepts

• Ideal for practical learning and experiments

• Helps bridge theory and real-world applications

• Safe and controlled laboratory operation

• Enhances student engagement and comprehension

Applications of Pelton Wheel Turbine Demonstration

1. Engineering & Polytechnic Colleges

• Hydraulic machines laboratory

• Mechanical and civil engineering practicals

2. Universities & Research Institutes

• Renewable energy research

• Turbine performance studies

3. Technical Training Centers

• Skill development programs

• Power plant operation training

4. Hydropower Education

• Demonstration of high-head hydro systems

• Energy conversion studies

Where is Pelton Wheel Turbine Used in Real Life?

Pelton turbines are widely used in:

• Hydroelectric power plants (high head)

• Mountainous regions

• Remote power generation stations

• Renewable energy projects

Countries Where Pelton Wheel Turbines are Commonly Used

Pelton wheel turbines are extensively used in:

• India

• Nepal

• Switzerland

• Norway

• USA

• Canada

• Chile

• Peru

• Austria

• New Zealand

The Pelton Wheel Turbine Demonstration accessory supplied by Scilabstore is suitable for global educational standards, supporting international academic requirements.

Why Choose Scilabex & Scilabstore?

• ✔ Trusted scientific and laboratory equipment suppliers

• ✔ High-quality engineering lab accessories

• ✔ Designed for Indian and international standards

• ✔ PAN India delivery available

• ✔ International shipping supported

• ✔ Reliable after-sales support

scilabex.com and Scilabstore are recognized as trusted companies, supplying durable and accurate laboratory equipment to institutions across India and abroad.

Frequently Asked Questions (FAQs)

Q1. What type of turbine is a Pelton wheel?

A Pelton wheel is an impulse turbine used for high-head, low-flow water conditions.

Q2. What is the main purpose of a Pelton wheel demonstration accessory?

It helps students understand the construction and working of a Pelton turbine practically.

Q3. Is pressure constant in a Pelton turbine?

Yes, pressure remains atmospheric throughout the turbine operation.

Q4. Can this accessory be used in engineering labs?

Yes, it is widely used in mechanical and hydraulic engineering laboratories.

Q5. Is international delivery available?

Yes, Scilabstore and scilabex.com provide PAN India and international delivery.
