Flow Through Orifice & Mouth Piece

Note: Price is based on given specs. For other specifications, please submit an inquiry.

Flow through orifice and mouthpiece is a fundamental concept in fluid mechanics, widely studied in engineering laboratories and applied in various industrial and hydraulic systems. An orifice is a small opening in the side or bottom of a tank through which fluid flows, while a mouthpiece is a short tube attached to an orifice to improve discharge characteristics.

These flow-measuring and flow-control devices operate on Bernoulli’s principle, which relates pressure, velocity, and elevation in fluid flow. Understanding flow through orifice and mouthpiece is essential for civil, mechanical, and chemical engineering, as it helps in analyzing fluid behavior, discharge calculation, and energy losses.

Trusted scientific equipment suppliers like scilabex.com and Scilabstore provide high-quality Orifice & Mouthpiece apparatus with assured performance, PAN India delivery, and international shipping, making them suitable for laboratories and institutions worldwide.

What is Flow Through Orifice?

An orifice is a small opening of any cross-section provided in a tank or vessel, through which fluid flows under the influence of gravity. The flow rate depends on the head of liquid above the orifice and the orifice geometry.

Orifices are commonly used to:

• Measure discharge

• Control fluid flow

• Study jet formation and contraction

What is a Mouthpiece?

A mouthpiece is a short tube (length usually 2–3 times its diameter) attached externally or internally to an orifice. It increases discharge by reducing energy losses and controlling jet contraction.

Types of mouthpieces:

• External cylindrical mouthpiece

• Internal mouthpiece

• Convergent mouthpiece

• Divergent mouthpiece

Principle of Flow Through Orifice & Mouthpiece

Flow through orifice and mouthpiece is based on Bernoulli’s theorem, which states:

The total energy of a flowing fluid remains constant along a streamline.

As fluid exits the orifice or mouthpiece:

• Pressure energy converts into kinetic energy

• Fluid velocity increases

• A free jet is formed

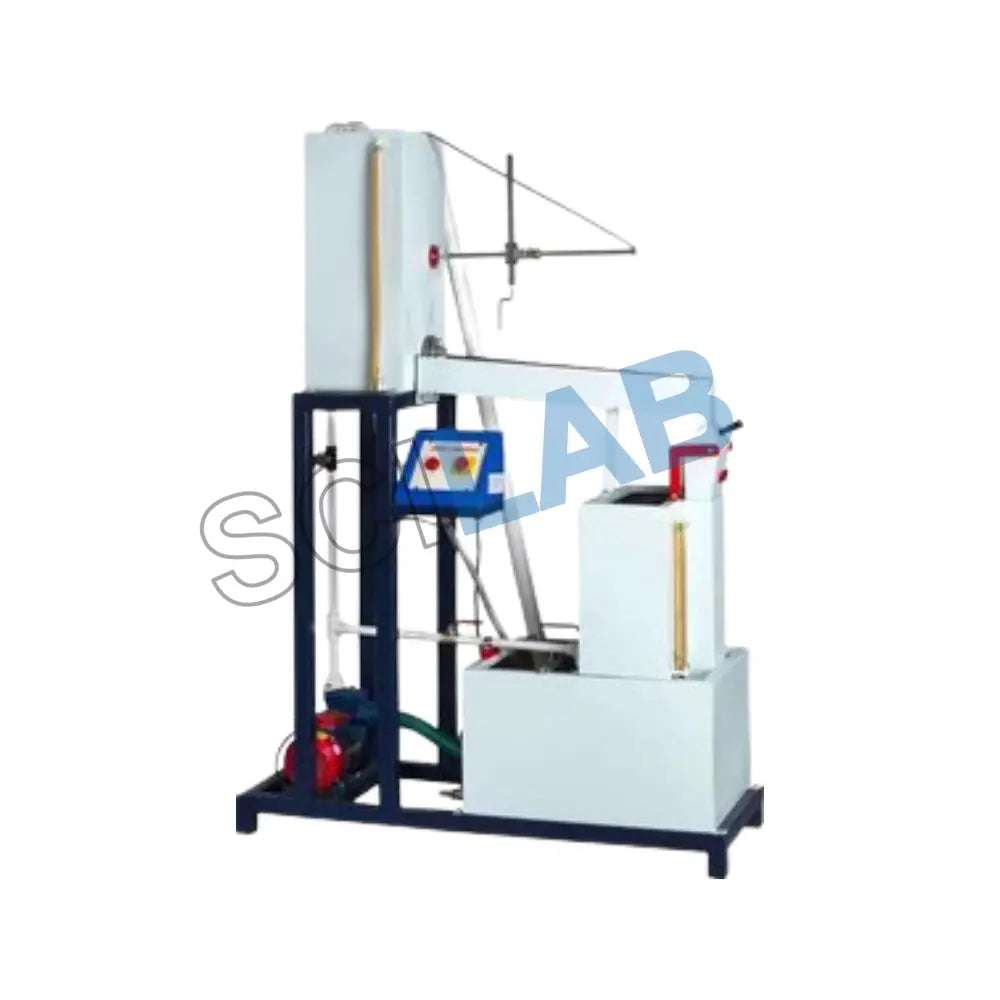

Construction of Orifice & Mouthpiece Apparatus

A typical laboratory setup includes:

• Water tank with transparent walls

• Interchangeable orifice and mouthpiece attachments

• Measuring tank for discharge calculation

• Scale for head measurement

• Collection system

This arrangement helps students accurately observe and measure flow behavior.

Working of Orifice & Mouthpiece

• Water is filled in the tank up to a specific head

• Orifice or mouthpiece is opened

• Water flows out forming a jet

• Time taken to collect a known volume is measured

• Discharge is calculated using standard equations

Discharge Formula

Orifice Discharge

$$Q = C_d \times A \times \sqrt{2gh}$$

Mouthpiece Discharge

$$Q = C_d \times A \times \sqrt{2gh}$$

Where:

• $Q$ = Discharge

• $C_d$ = Coefficient of discharge

• $A$ = Area of orifice/mouthpiece

• $g$ = Acceleration due to gravity

• $h$ = Head of liquid

Key Features

• Simple and effective experimental setup

• Accurate discharge measurement

• Clear observation of jet formation

• Durable and corrosion-resistant materials

• Suitable for repeated laboratory use

Advantages of Orifice & Mouthpiece

• Easy to install and operate

• Cost-effective flow measurement

• Suitable for low to medium head conditions

• Essential for academic learning

Applications of Flow Through Orifice & Mouthpiece

1. Engineering Laboratories

• Fluid mechanics experiments

• Discharge coefficient determination

2. Water Management Systems

• Tank discharge control

• Flow regulation

3. Industrial Uses

• Chemical processing

• Liquid storage tanks

Where is Orifice & Mouthpiece Used?

• Educational institutions

• Research laboratories

• Industrial fluid storage systems

• Irrigation setups

Countries Where These Systems Are Used

Flow through orifice and mouthpiece systems are used globally, including:

• India

• USA

• UK

• Germany

• UAE

• Australia

• Canada

With international delivery services, Scilabstore supports global laboratories and industries efficiently.

Why Choose Scilabex & Scilabstore?

• ✔ Trusted scientific equipment suppliers

• ✔ High-quality laboratory apparatus

• ✔ PAN India delivery available

• ✔ International shipping supported

• ✔ Products compliant with global standards

scilabex.com and Scilabstore are known as trusted companies, delivering reliable laboratory equipment worldwide.

Frequently Asked Questions (FAQs)

Q1. What is the difference between an orifice and a mouthpiece?

An orifice is a simple opening, while a mouthpiece is a short tube attached to an orifice to increase discharge.

Q2. Which gives more discharge, orifice or mouthpiece?

A mouthpiece generally gives higher discharge than an orifice.

Q3. Is this apparatus suitable for engineering labs?

Yes, it is a standard fluid mechanics lab apparatus.

Q4. Can it be used internationally?

Yes, Scilabstore provides PAN India and international delivery.
